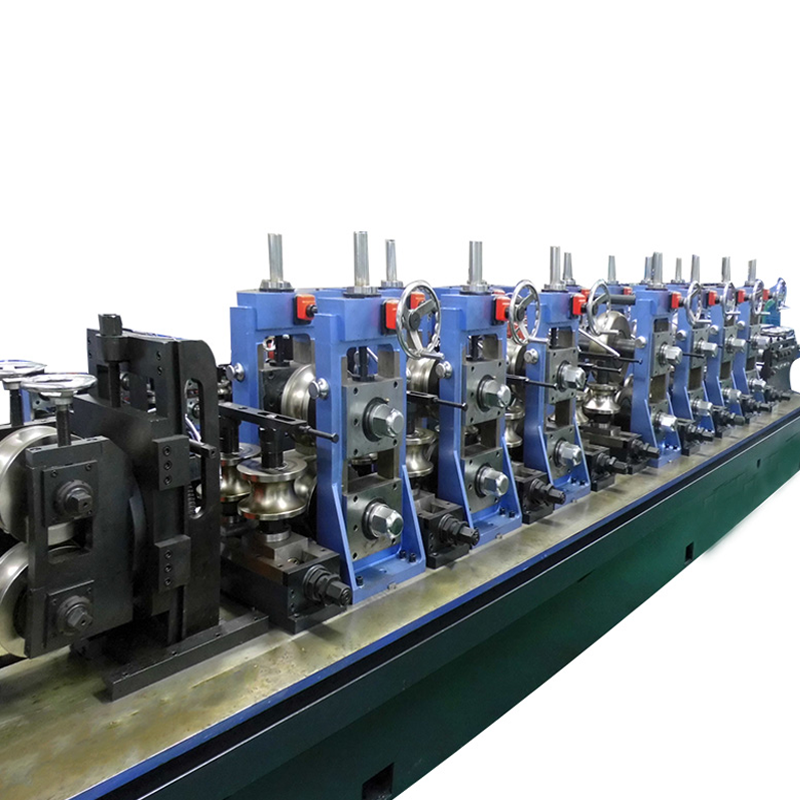

Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed.
| Quantity: | |
|---|---|
TY219
Technical parameters | |
TY219 | |
Outer diameter | φ89~219mm |
Wall thickness | 3.0~6.0mm |
Production speed | 0~50m/min |
Driving motor power | 200Kw*3sets |
HF welder power | 500Kw |
Configuration | |
Hydraulic single decoiler | / |
Leveling & straightening | / |
Square shearing | / |
Horizontal accumulator | / |
Forming and Sizing unit | Optional: DC motor/AC motor |
Solid HF welder | / |
Computer flying saw | / |
Run-out table | / |
Technical parameters | |
TY219 | |
Outer diameter | φ89~219mm |
Wall thickness | 3.0~6.0mm |
Production speed | 0~50m/min |
Driving motor power | 200Kw*3sets |
HF welder power | 500Kw |
Configuration | |
Hydraulic single decoiler | / |
Leveling & straightening | / |
Square shearing | / |
Horizontal accumulator | / |
Forming and Sizing unit | Optional: DC motor/AC motor |
Solid HF welder | / |
Computer flying saw | / |
Run-out table | / |
