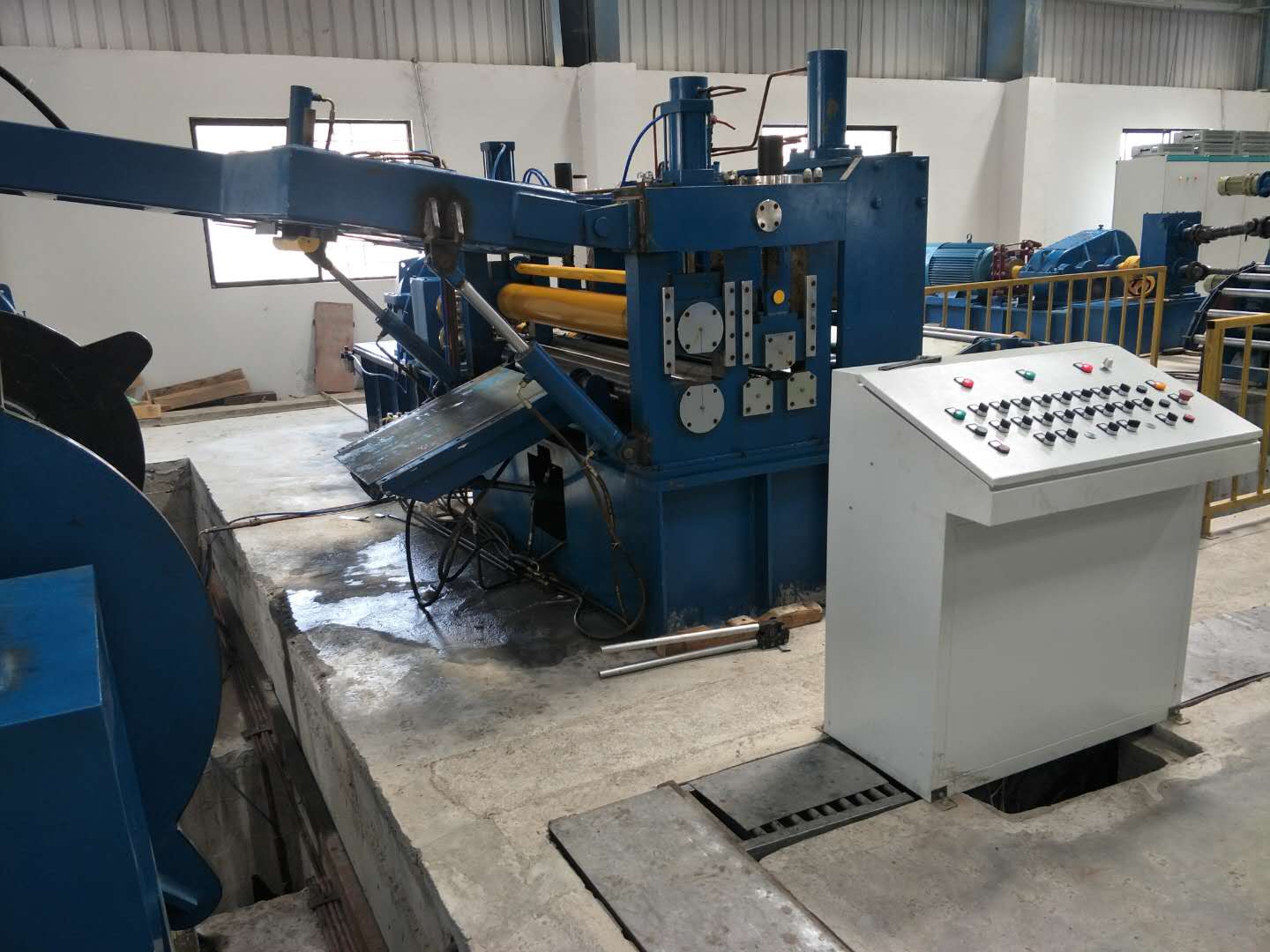

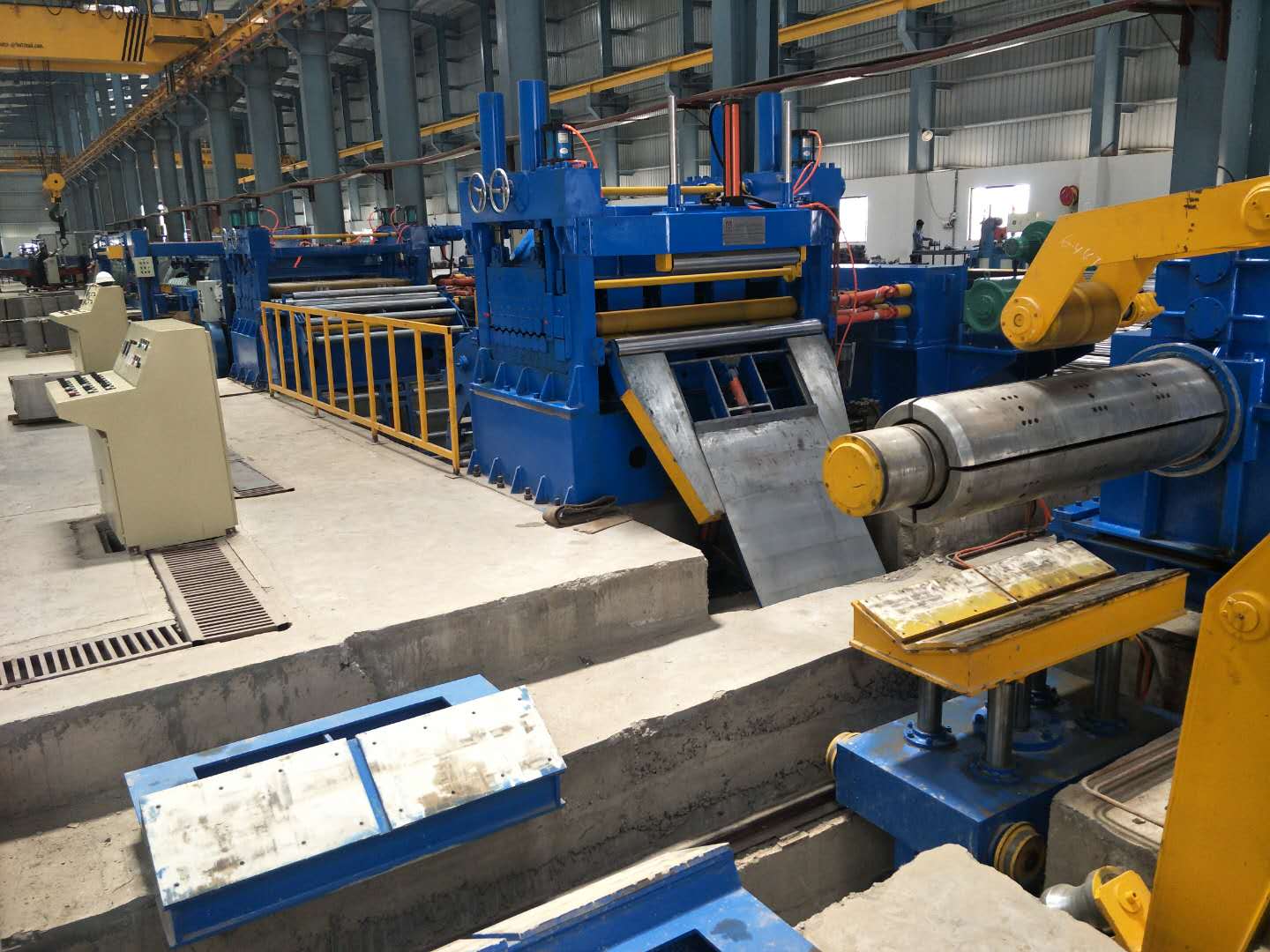

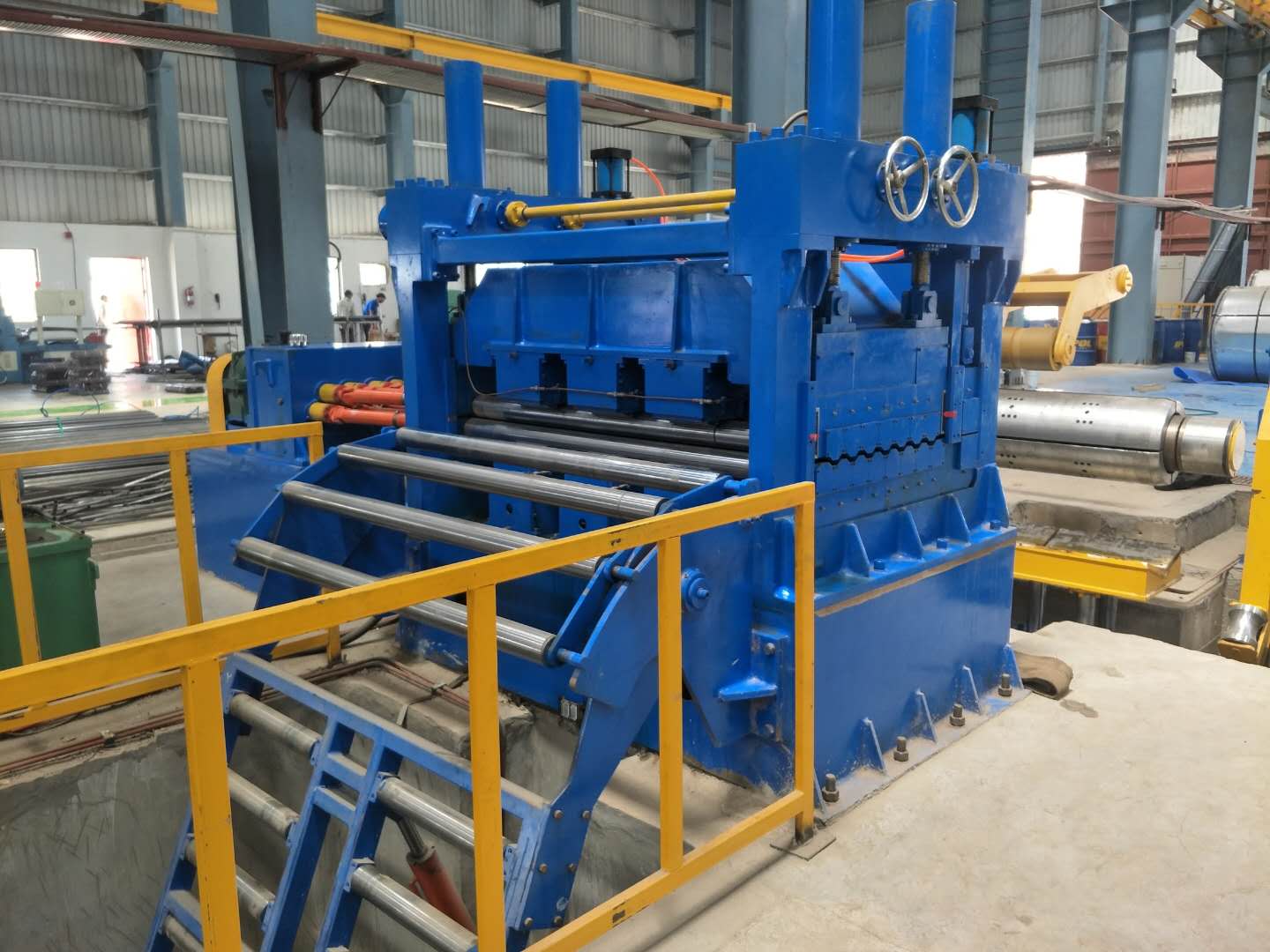

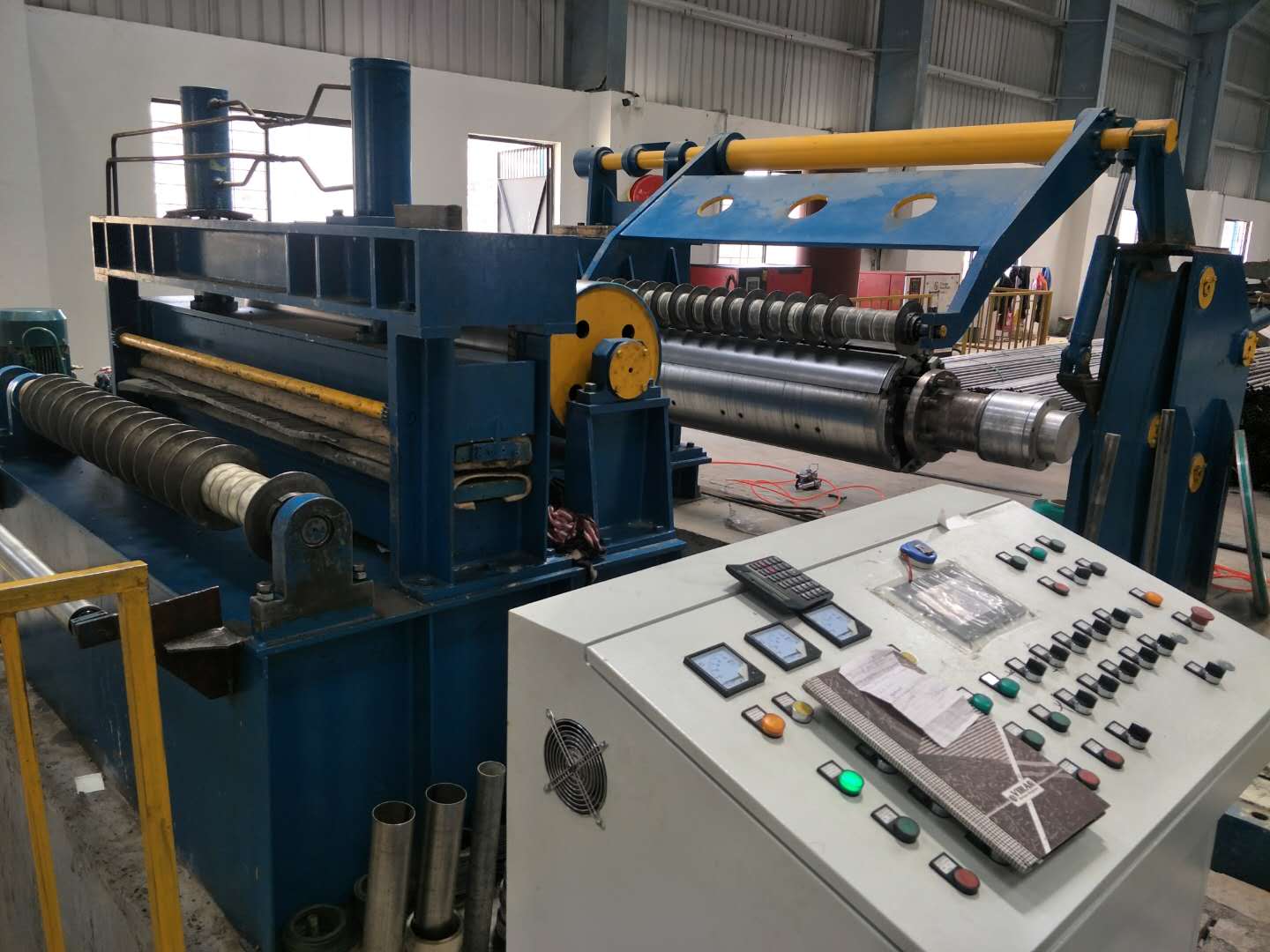

High speed slitting line

According to auto parts’ characteristic like high-strength, high precision, company designed and manufactured the special machine for auto parts. These machines are using for producing seat pillow pipe, anti-collision beam, exhaust pipe etc.

Availability:
Quantity:
Inquire Add to Basket



Type

0.2x1.5x600

0.3x2.0x1250(1600)

0.3x3.0x1250(1600,2000)

Coil thickness

0.2~1.5mm

0.3~2.0mm

0.3~3.0mm

Coil width

100~600mm

400~1250(1600)mm

400~1250(1600,2000)mm

Coil weight

≤5T

≤20T(25T)

≤20T(25T)

Decoil I.D

Ø508\610mm

Ø508\610mm

Ø508\610mm

Recoil I.D

Ø508mm

Ø508mm

Ø508mm

Coil O.D

≤Ø1600mm

≤Ø1800mm

≤Ø2000mm

Qty of strip

5~15

8~24

8~30

Line speed

0~150m/min

0~150m/min

0~150m/min



Type

1.0x6.0x1600(2000)

2.0x10.0x1600(2000)

3.0x12.0x2000

Coil thickness

1.0~6.0mm

2.0~10.0mm

3.0~12.0mm

Coil width

700~1600(2000)mm

800~1600(2000)mm

800~2000mm

Coil weight

≤25T

≤25T(30T)

≤30T

Decoil I.D

Ø508\610\760mm

Ø508\610\760mm

Ø610\760\820mm

Recoil I.D

Ø2000mm

Ø2000mm

Ø2000mm

Coil O.D

≤Ø1600mm

≤Ø1600mm

≤Ø1600mm

Qty of strip

5~15

5~15

5~15

Line speed

0~60m/min

0~30m/min

0~30m/min
